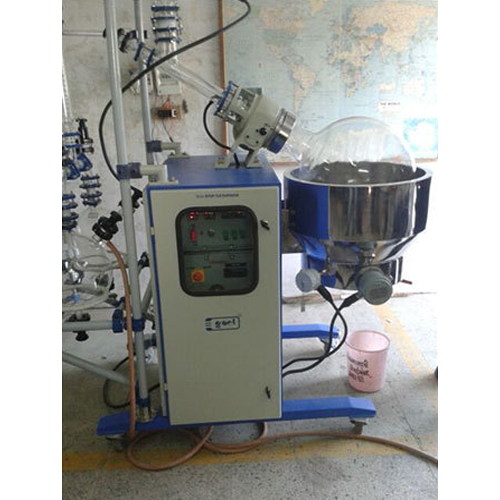

20 litre Rotary Evaporator

20 litre Rotary Evaporator
20 litre Rotary Evaporator
Send Inquiry
Product Code : RE-09
Brand Name : Elmrad
Product Description

Taking quality as our prime concern, we are persistently engaged in manufacturing, supplying and exporting 20 litre Rotary Evaporator. Available in different condenser configurations, this rotary evaporator is featured with a control panel for clear vision and vacuum measurement. Our team of quality supervisors checks this device on different quality checking parameters to ensure final product is error-free. Our offered 20 litre Rotary Evaporator is widely accredited for the following significant attributes:

  • Easy installation & maintenance
  • Hassle-free operations
  • Optimum performance
  • Longer functional life

Other Details:

TRANSMECH ROTA 10 & 20 rotary evaporator is very easy to operate and is provided with standard models of glass components that are readily acquirable off the shelf. The product is used in various laboratory applications. You can avail it with optional electrical drives and control panel that are ideal for operation in explosion proof zones.

TRANSMECH  ROTA 10 & 20 are provided with basic control panel with clear display and efficient self-explanatory functions. Its' top features are DIGITAL view for RPM, vapor temperature and bath temperature. It also has an analogue gauge which is suitable for vacuum measurement.

TRANSMECH ROTA 10 & 20 is available with various condenser configurations such as double condensers, downward condenser, and short condenser. As a standard, we provide motorized bath lift.

  • AC VFD drive is used to control speed from 5 to 90 RPM
  • Flask support is provided to allow simple fixing as well as removal of rotating flask
  • Trolley mounted system is also present for simple movement

Technical Specification:
Electrical connection required 220‚ 240 V, 50 Hz, (Phase + neutral)
(Arrangement of different supply can be made)
Total Power consumption 4.5 KW
Rotation drive 0.18 KW, 1440 RPM, TEFC induction motor, Non Flameproof
Bath lift 0.18 KW, 1440 RPM, TEFC induction motor, Non Flame Proof
Speed Control 10‚90 RPM with frequency converter & DIGITAL display
Heater 4 KW, Non Flameproof
Explosion protection control OPTIONAL
Bath heating control Electronic with PT-100 & DIGITAL display
Vapour temperature PT-100 with DIGITAL display
Bath temperature Up to 180oC with silicon oil
Standard Control Panel Non Flameproof,With push buttons & switches with require electrical safety protection,
PLC control OPTIONAL
Bath Double walled Stainless steel (SS 304) with insulation
Glass Assembly 10 LIT
10 Lit Evaporating flask, 0.5 m2upward condenser, product cooler, 10 l receiver with drain valve
20 LIT
20 lit Evaporating Flask, 0.6 m2upward condenser, product cooler, 10 l receiver with drain valve
Housing and trolley M.S Powder Coated
